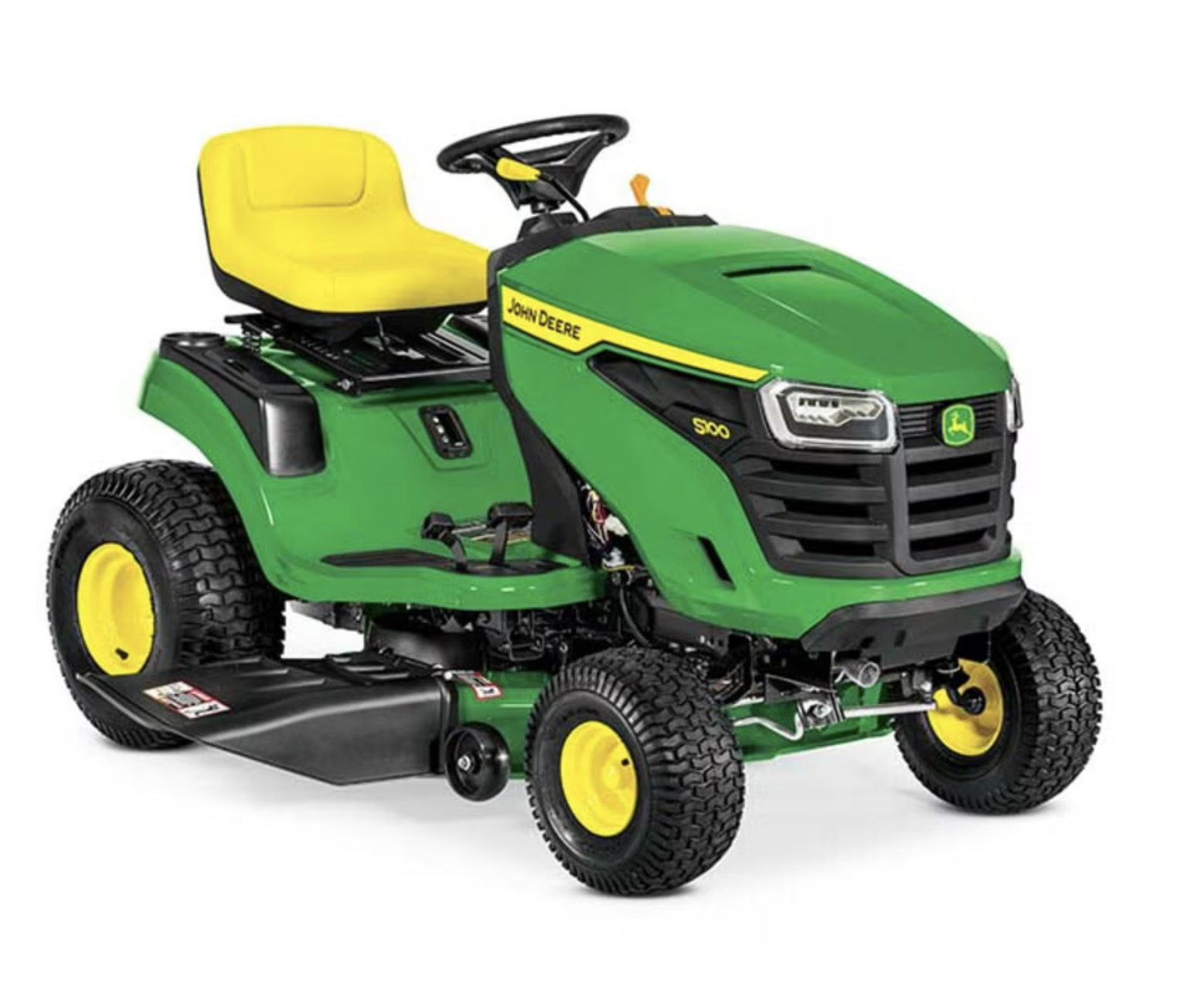

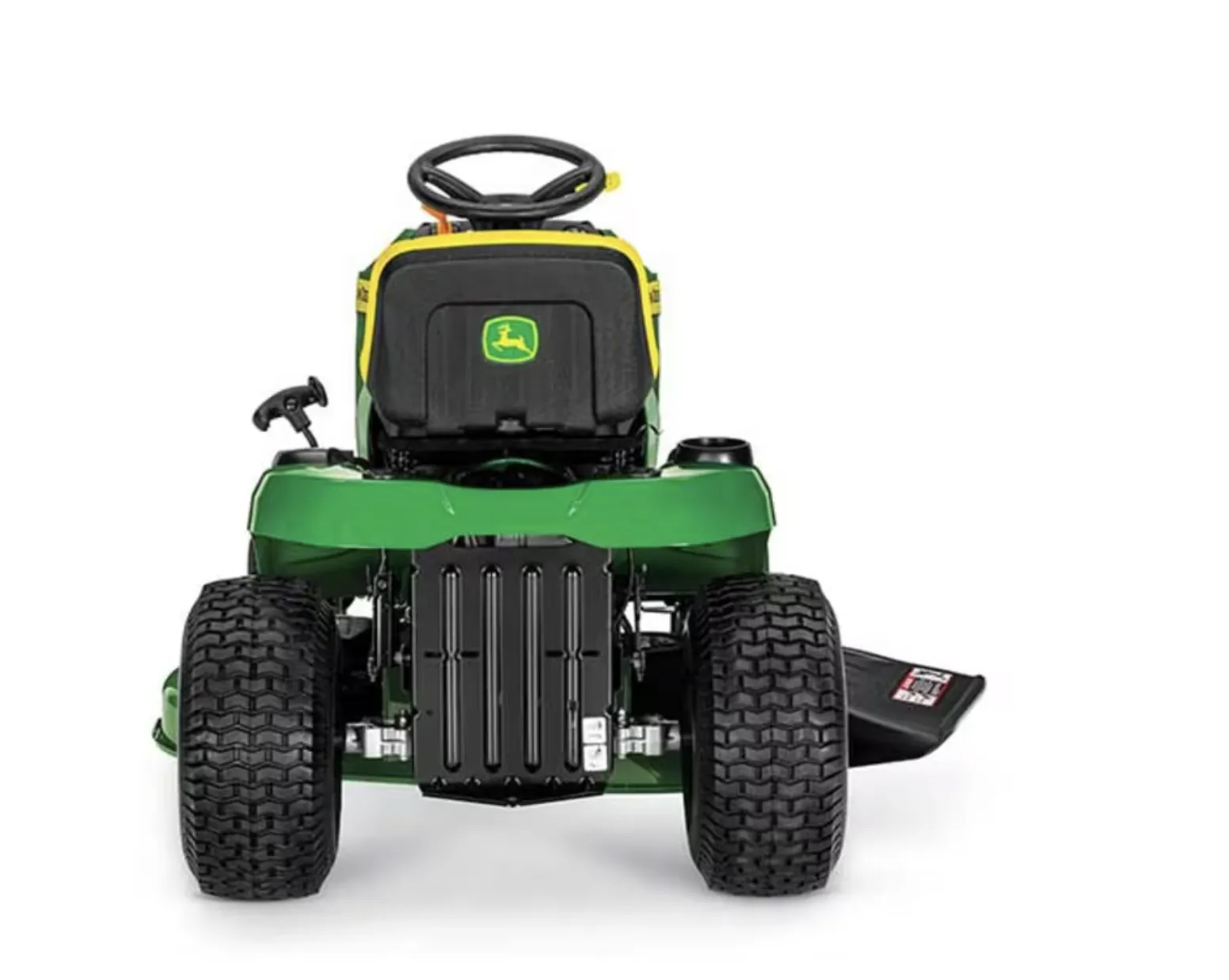

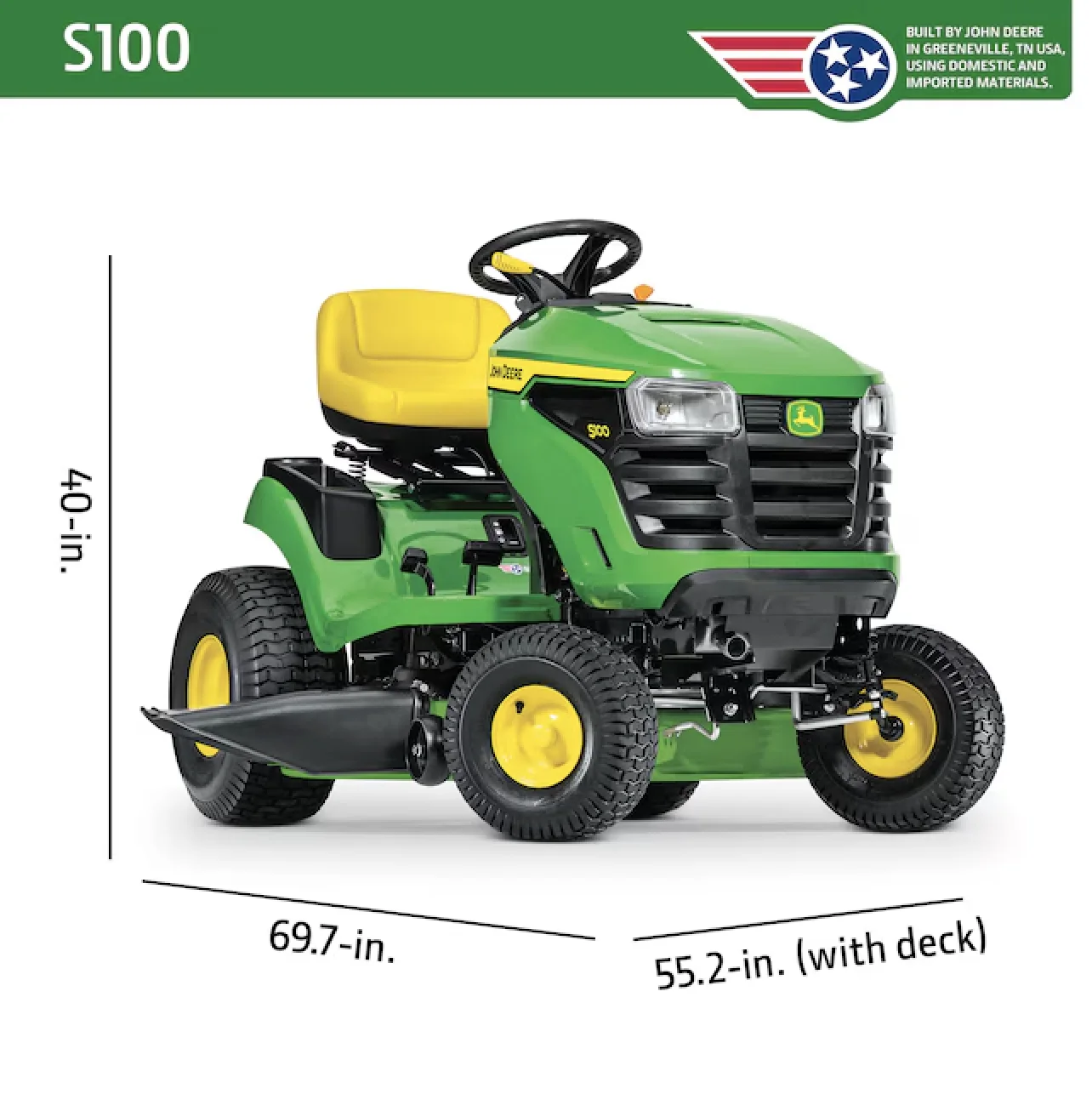

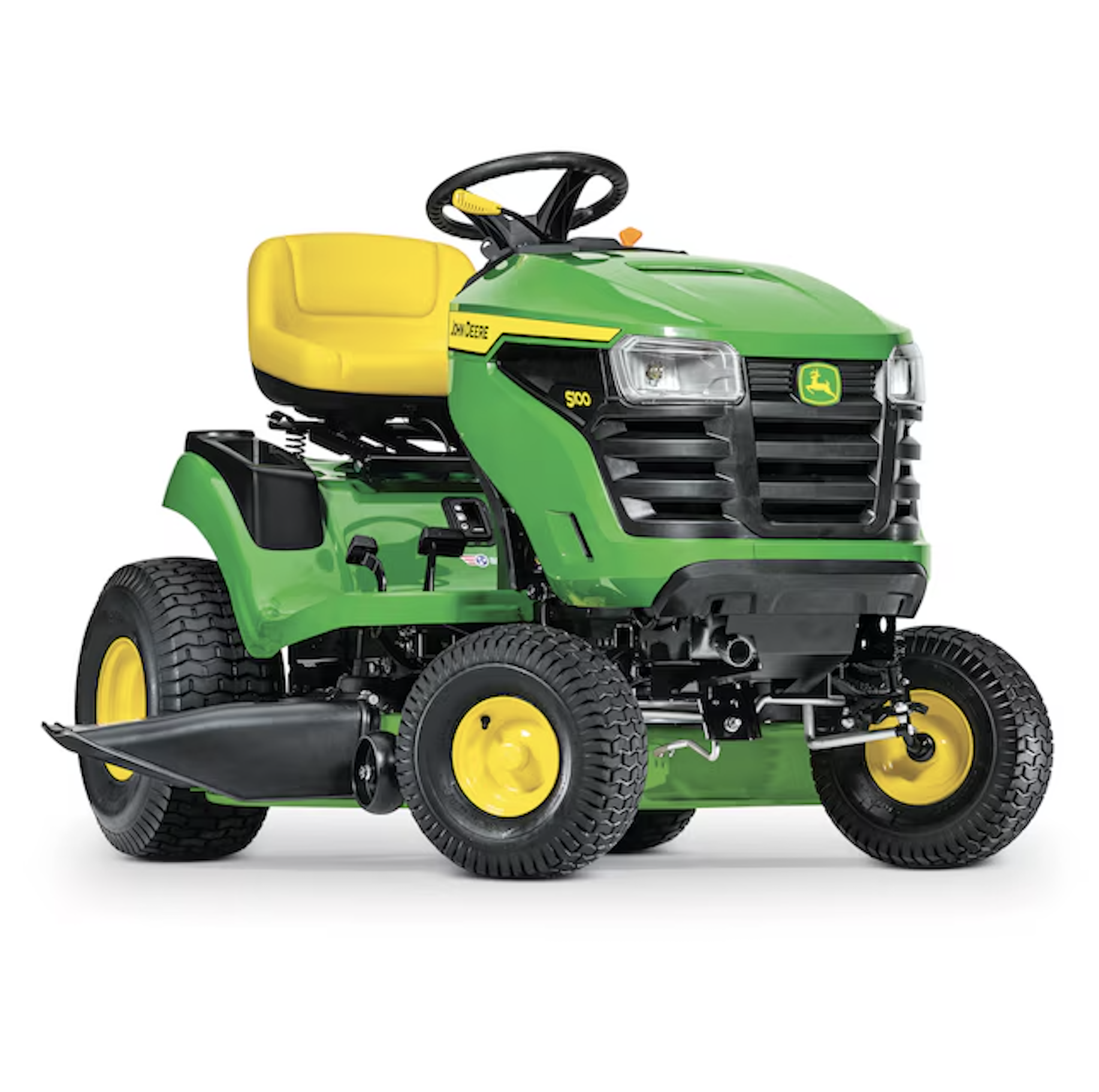

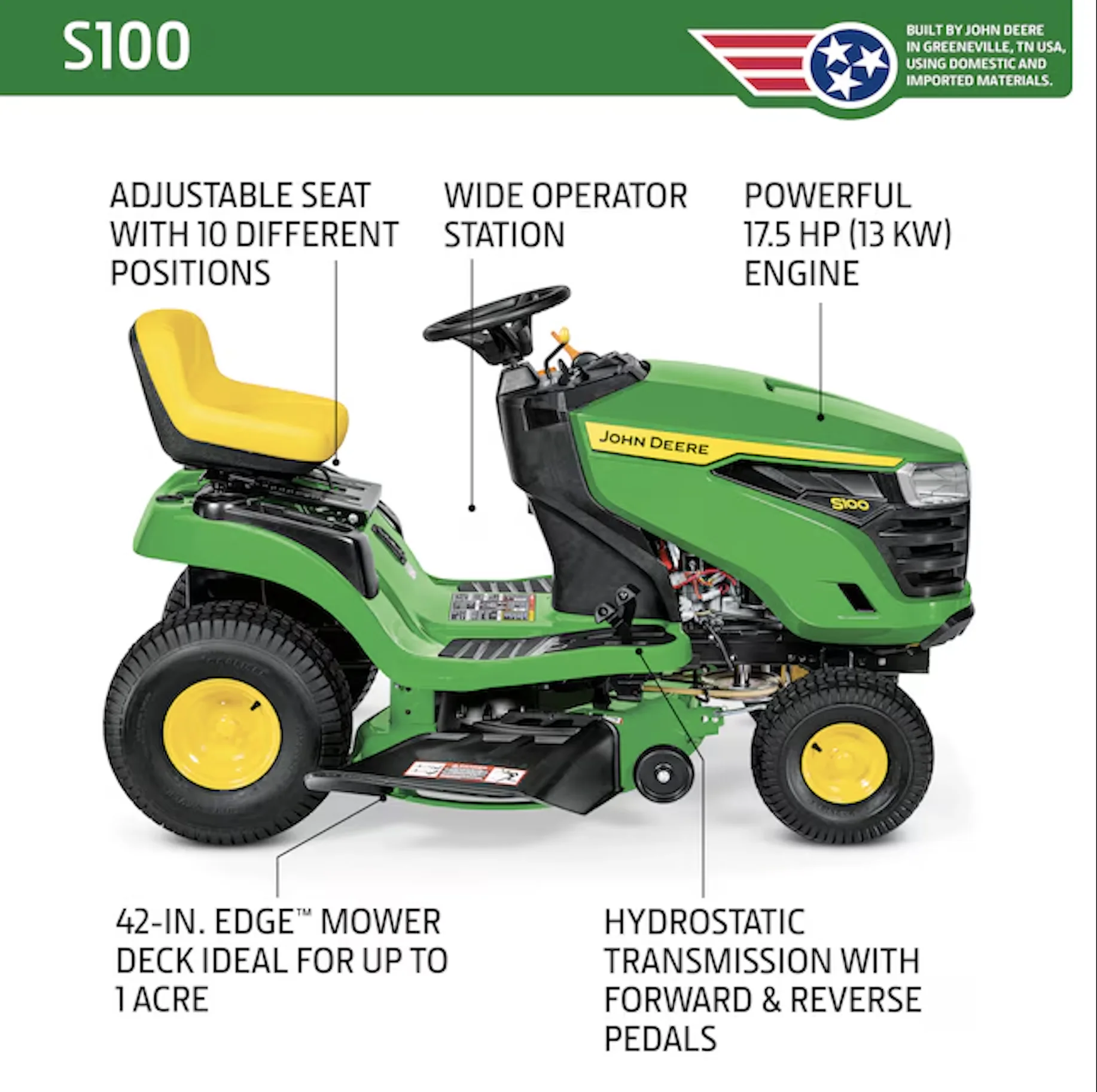

John Deere S100 Lawn Tractor – Detailed Product Description

The John Deere S100 is a versatile and dependable lawn tractor engineered to deliver exceptional performance, long-lasting durability, and an effortless mowing experience for residential users. Built with John Deere’s trusted quality standards, the S100 combines a powerful engine, efficient cutting system, and ergonomic design to handle a wide range of lawn-care tasks with ease.

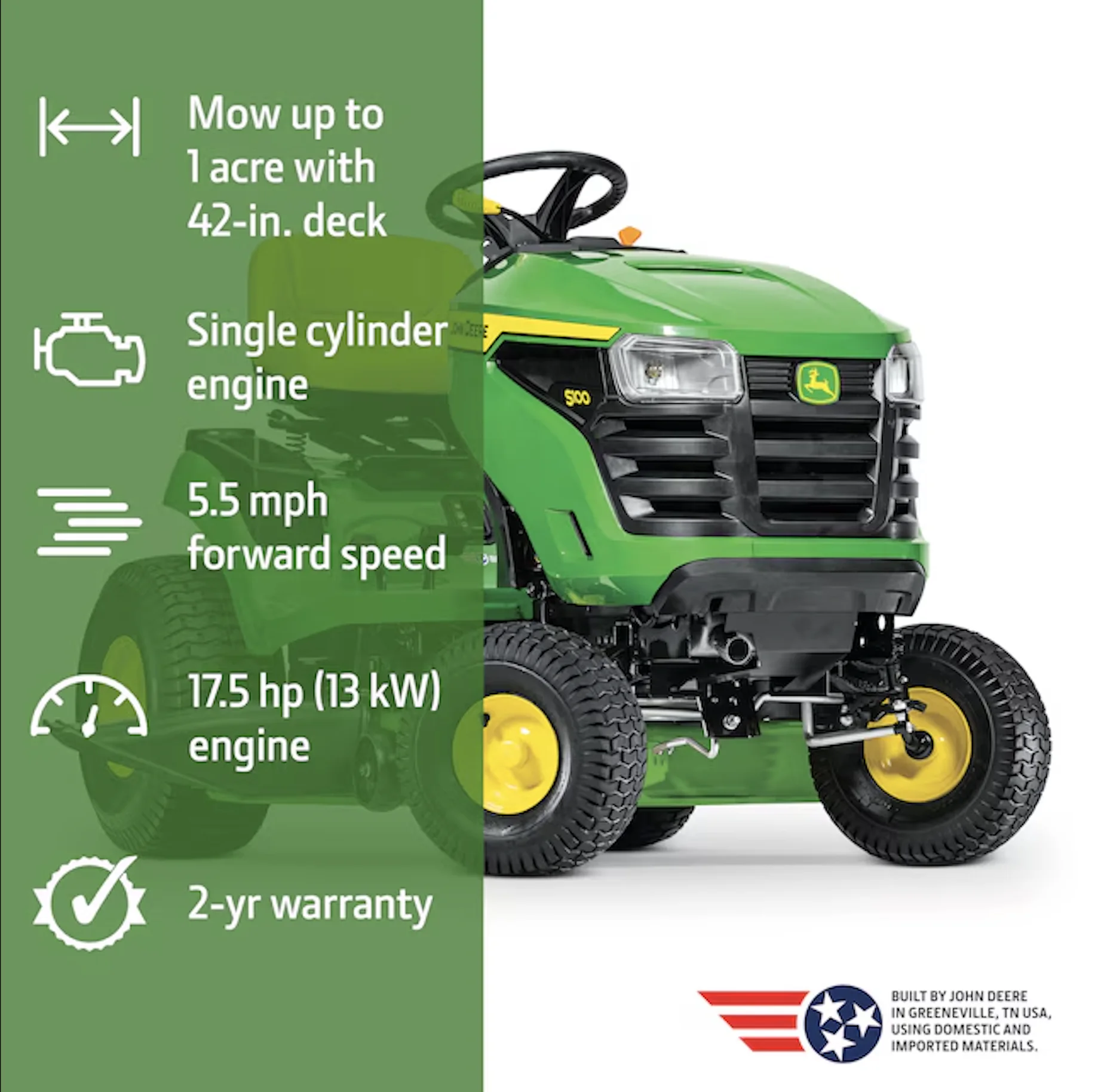

Powerful 17.5 HP Engine

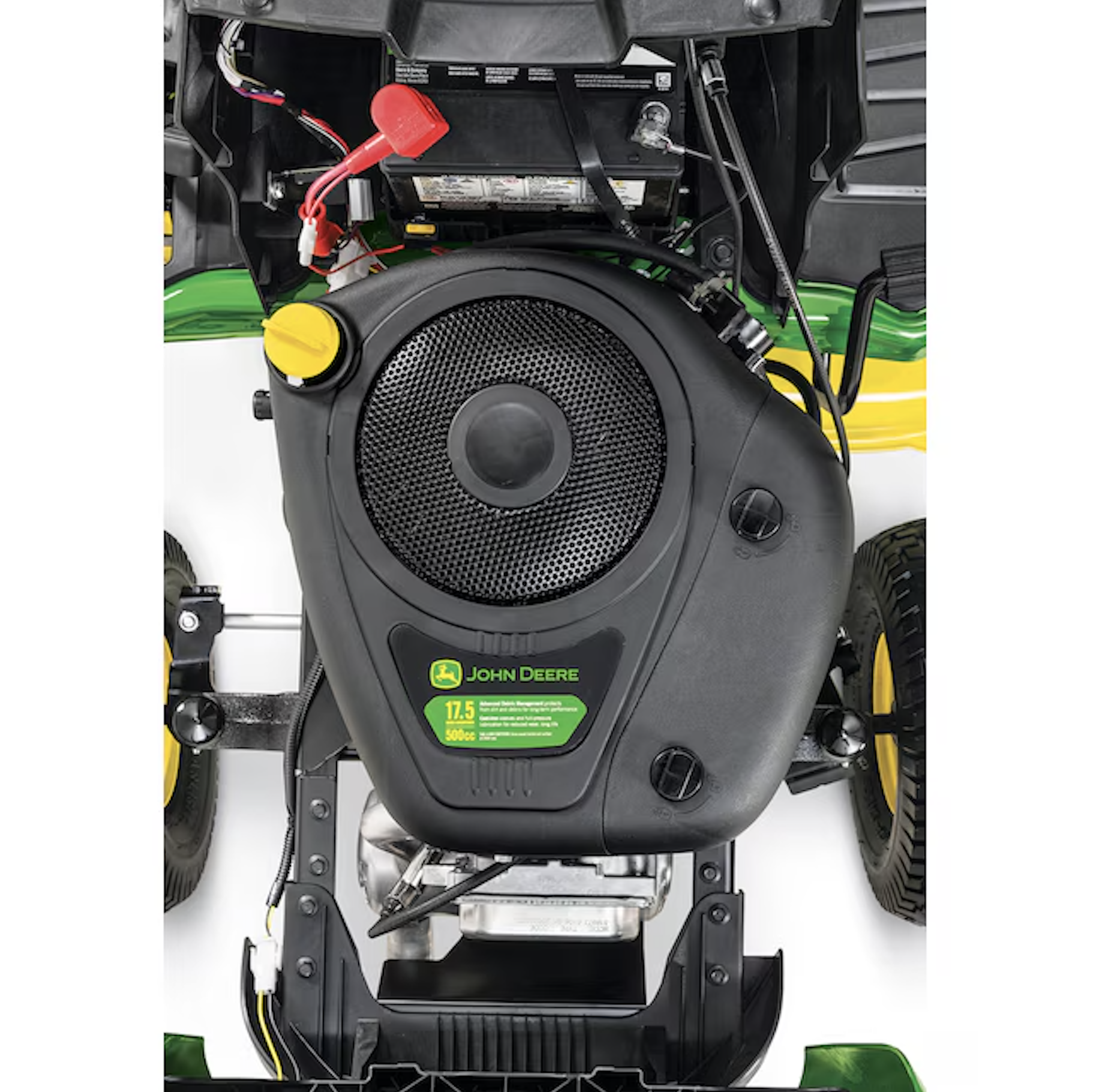

At the heart of the S100 is a 17.5 hp (13 kW) engine with overhead-valve construction and a full-pressure lubrication system. This design ensures:

• Efficient fuel consumption

• Smooth and reliable operation

• Longer engine life

• Easy maintenance thanks to the no-tools oil drain and replaceable oil filter

The mechanical governor maintains consistent engine speed even in challenging mowing conditions.

Hydrostatic Transmission for Easy Operation

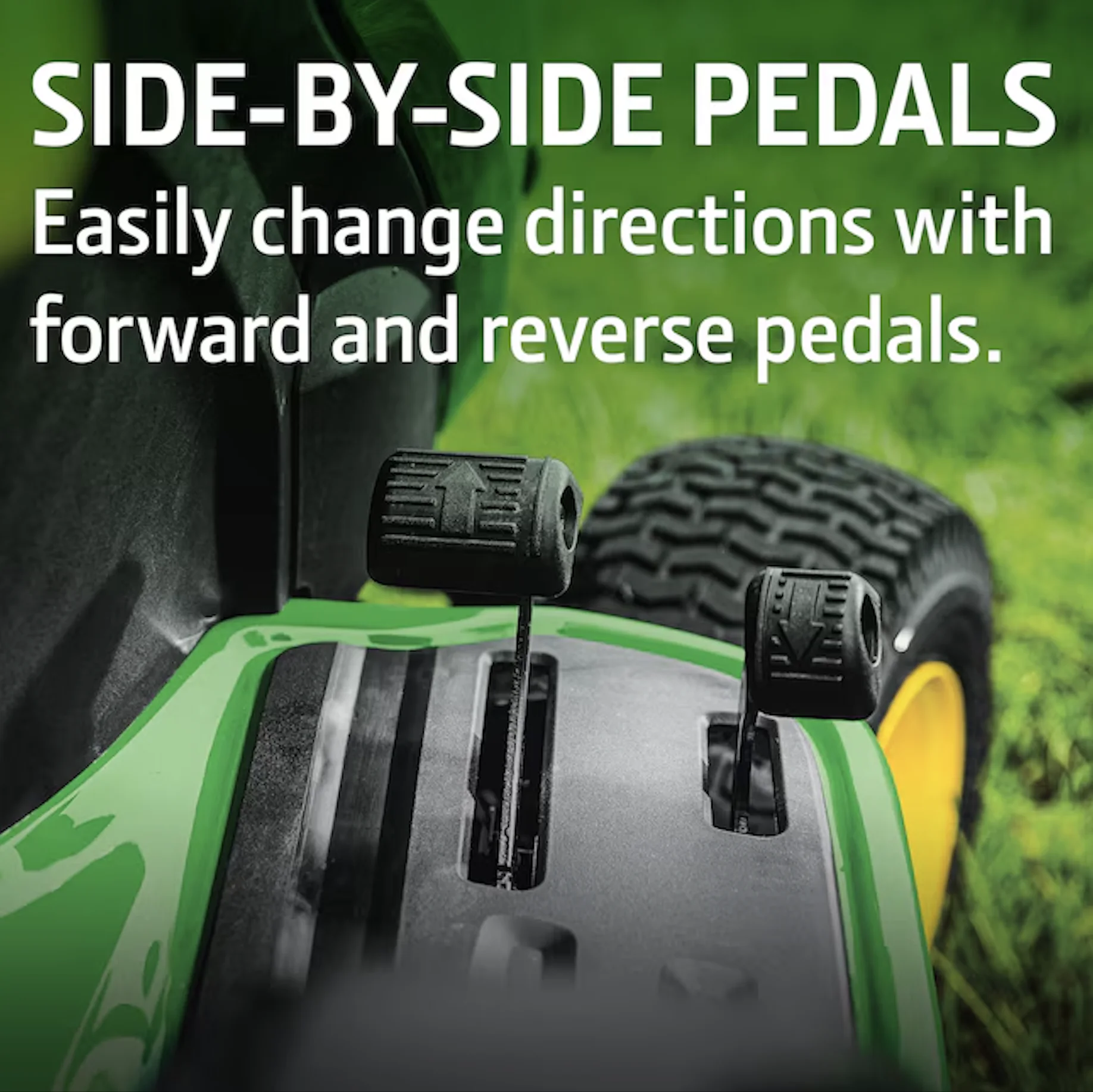

The S100 is equipped with a TLT200 hydrostatic, two-wheel-drive transaxle, controlled through intuitive side-by-side pedals. This allows the operator to switch smoothly between forward and reverse without shifting gears, offering:

• Simple and comfortable driving

• Precise speed control

• Maximum convenience for users of all experience levels

Forward speeds reach 5.5 mph (8.9 km/h), while reverse speeds go up to 3.2 mph (5.2 km/h).

Efficient Cutting Performance

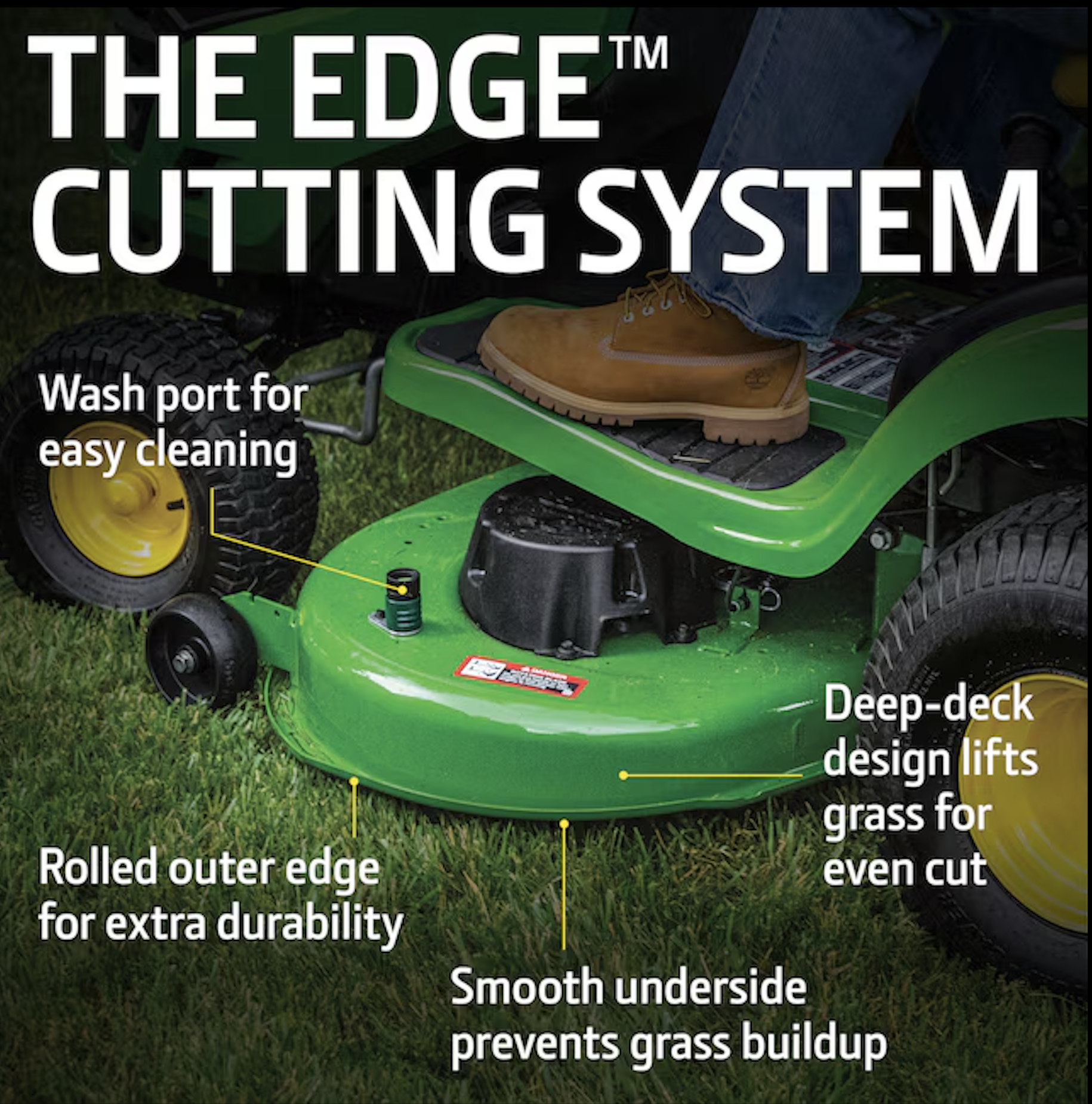

The tractor features a 42-inch (107 cm) Edge™ mower deck, designed for superior cut quality and durability. Key benefits include:

• 13 adjustable cutting positions from 1 to 4 inches (2.5–10.2 cm)

• Stamped steel deck shell (13-gauge, 2.3 mm thick)

• Two mower wheels for better deck stability

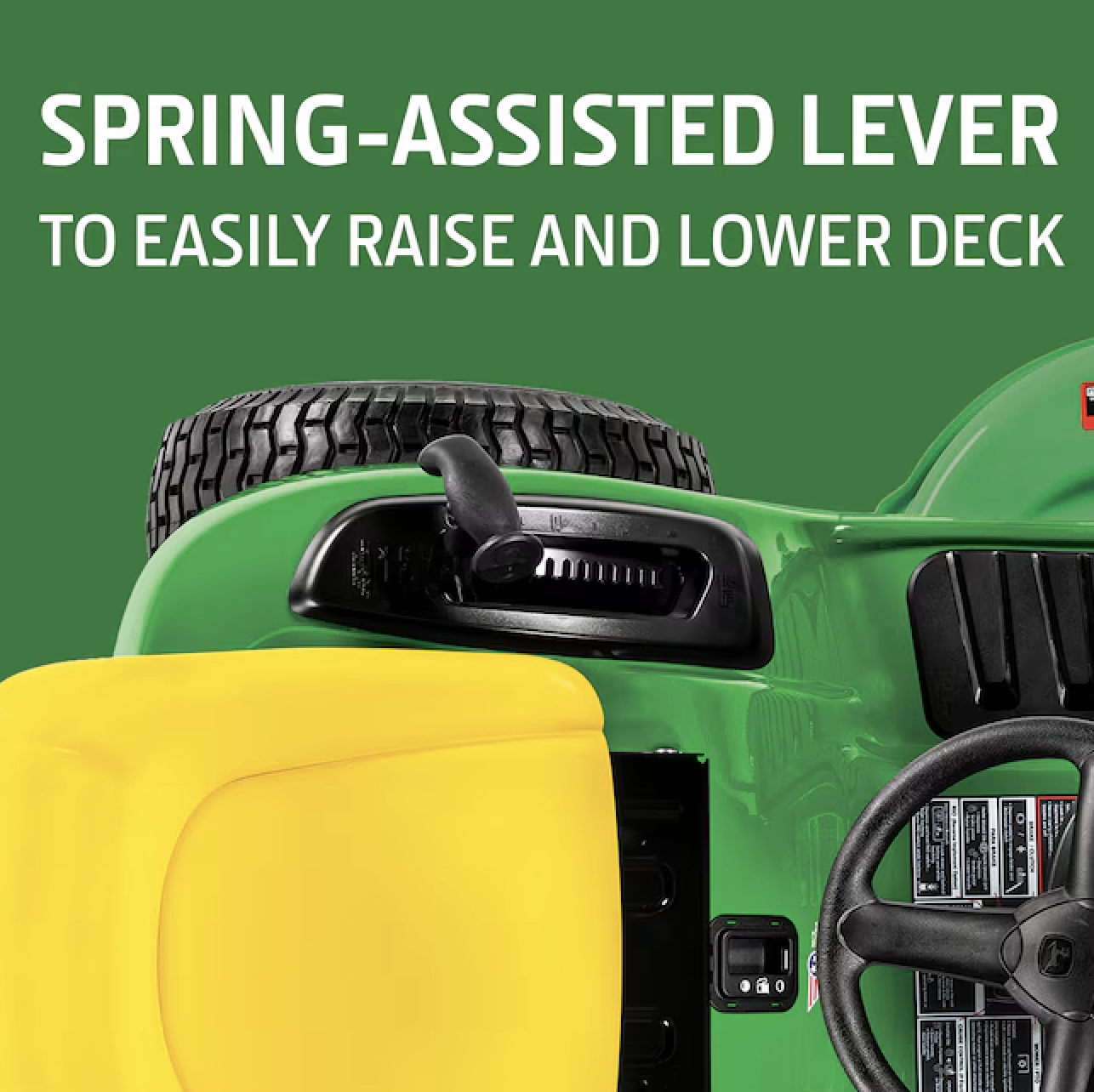

• Easy-Level system for quick deck leveling

• Manual PTO engagement for dependable blade power

A mower wash port is built into the deck, making cleanup fast and convenient.

Comfort and Usability

The John Deere S100 is designed with operator comfort in mind. It includes:

• A mid-height seat with 5.5 inches (14 cm) of fore-aft adjustment

• Two coil springs for seat suspension

• A debris-resistant floor mat

• Wide foot platform for improved comfort

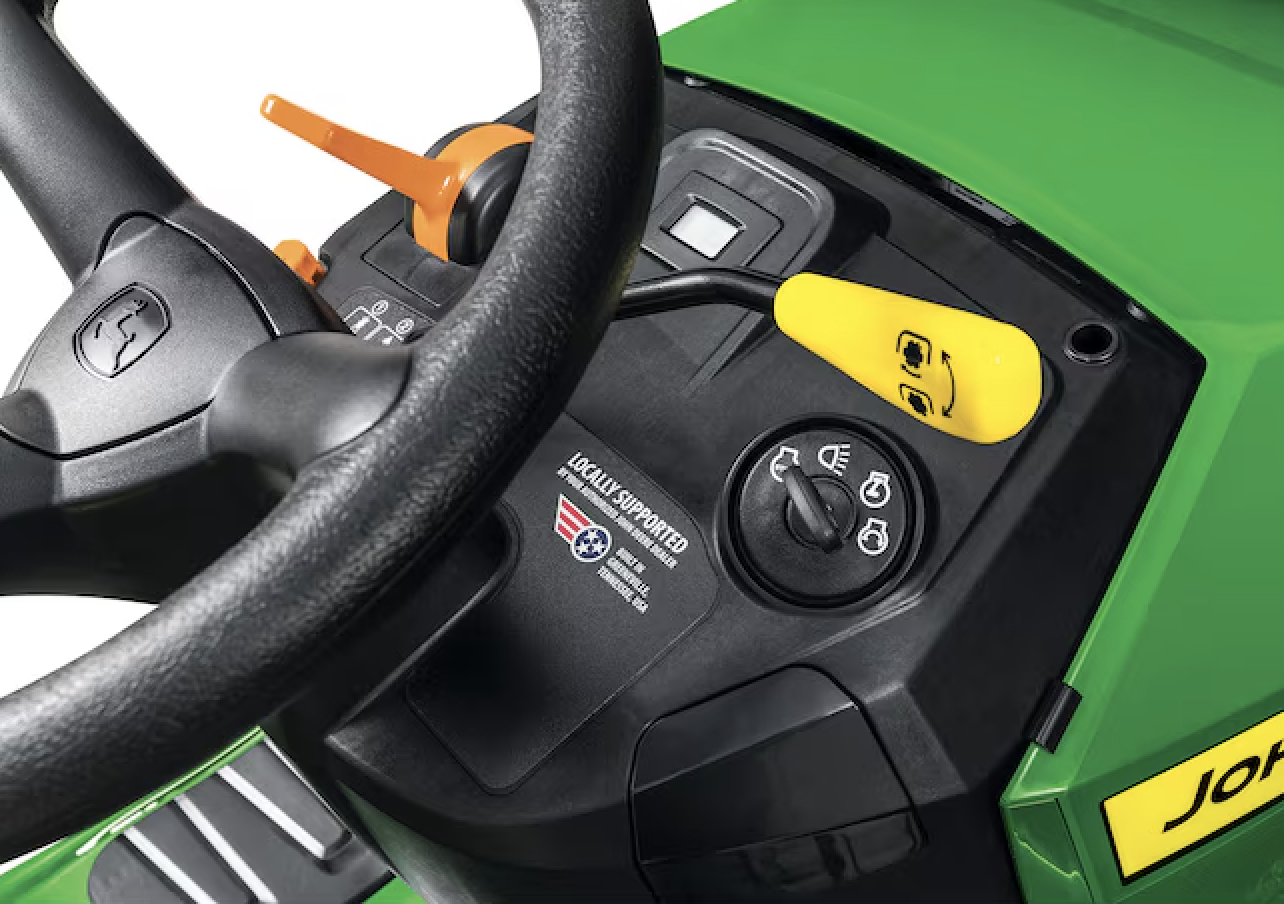

• Easily accessible controls

The mechanical fuel gauge, visible from the operator's seat, lets the user monitor fuel levels at a glance.

Strong and Durable Construction

Built for longevity, the S100 includes:

• A full-length welded steel frame for maximum structural strength

• Cast-iron front axle with sealed ball bearings

• Molded-in color hood resistant to rust, dents, and fading

• E-coat and powder-coated finishes for fade and corrosion resistance

Safety and Standards

John Deere integrates multiple safety features, including:

• Reverse Implement Option (RIO) for safer reverse mowing

• Compliance with ANSI and OPEI standards

• Included safety video for proper operation

Electrical System

The electrical system includes:

• 12V battery (300 CCA)

• 8-amp regulated charging system

• Two standard headlights for visibility

Warranty

Every S100 model is backed by a 2-year / 120-hour bumper-to-bumper warranty, ensuring peace of mind and reliable support.
